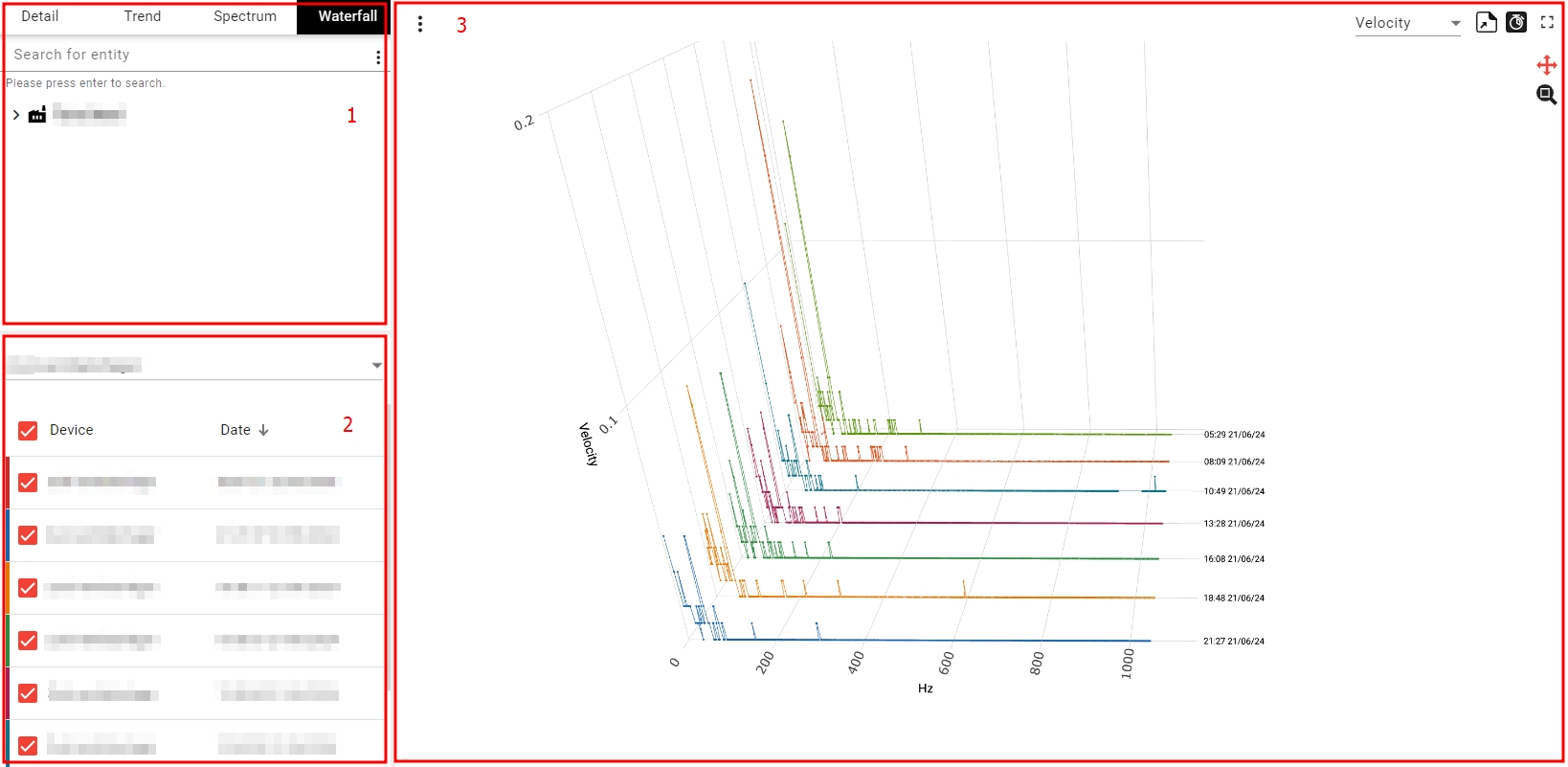

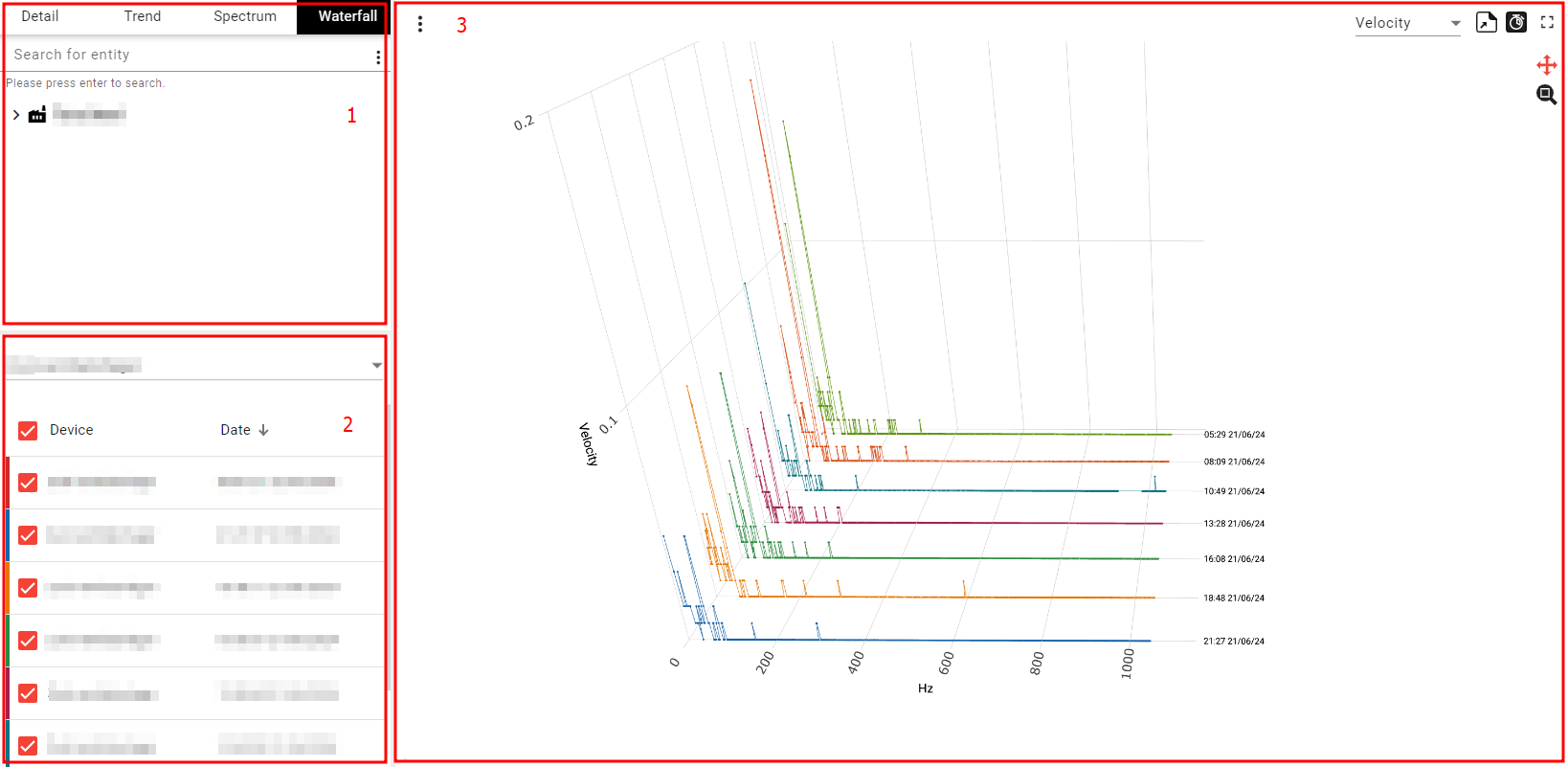

The waterfall view allows the user to view and analyze several FFTs next to each other in a tridimensional graph. The waterfall view is structured as follows:
Asset tree: where the user can change between the selected entity.
FFTs List: where the FFTs to be displayed in the waterfall graph can be selected.
Waterfall: tridimensional view of the FFTs selected.

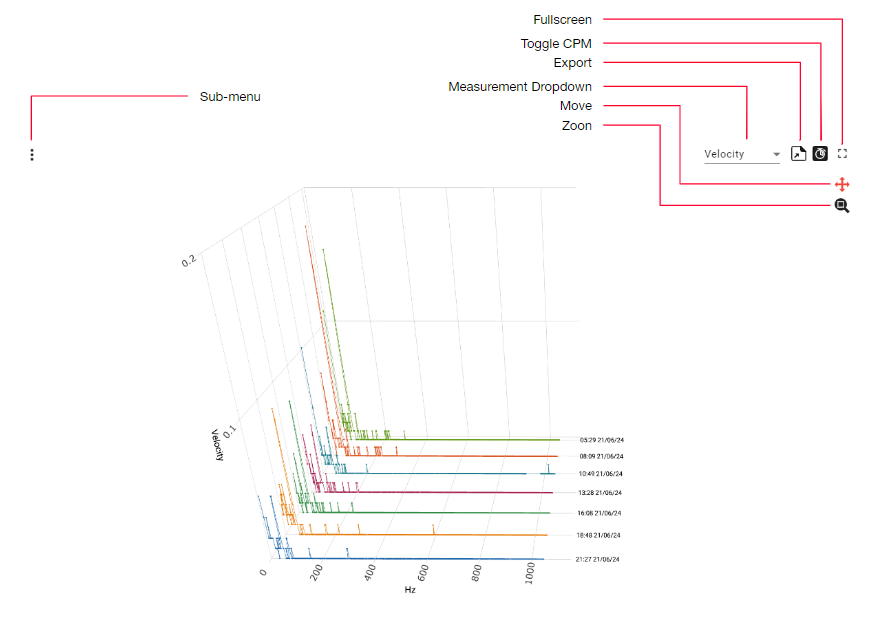

The graph functions are options available on top of the graph. These options allow the user to interact with the data displayed as follows:
Fullscreen: expands the graph view to fullscreen.
Export: download the graph's data in CSV format.
Toggle CPM: Rescale the horizontal axis to CPM or back to Hz.
Measurement dropdown: allows the user to change between the acceleration and the velocity FFT.
Move: with this tool selected, dragging with the mouse will move the graph on the screen.
Zoom: with this tool selected, dragging up with the mouse will zoom in while dragging down will zoom out. Using the mouse scroll wheel will provide the same functionality without needing to have the tool selected.
Sub-menu: allows the user to set the RPM grid delta.

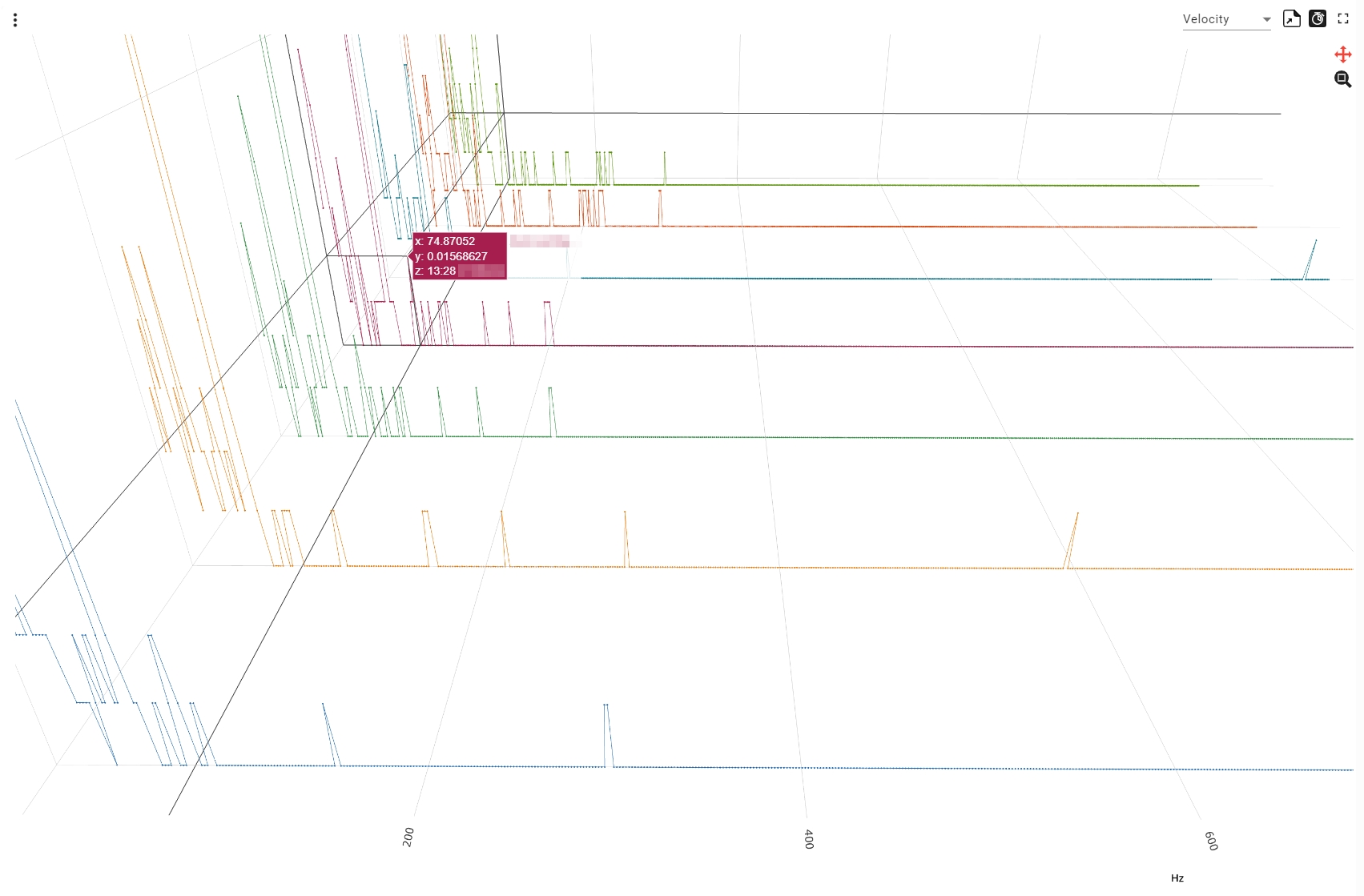

The specific value of a point in the graph can be seen by hovering on the graph. By doing so the values of the X, Y, and Z axes will show. Additionally, helping guides for analysis will be available at such points.
