Waterfall
The waterfall view allows the user to view and analyze several FFTs next to each other in a three-dimensional graph. The waterfall view is structured as follows:
Entities hierarchy: where the user can change between the selected entities. Top left of the page.
FFTs List: where the FFTs to be displayed in the waterfall graph can be selected. Bottom left of the page.
Waterfall: three-dimensional view of the FFTs selected. Dashboard panel.
Asset timeline: timeline of events and FFTs captured. Bottom of the dashboard panel.
User interaction
Graph functions

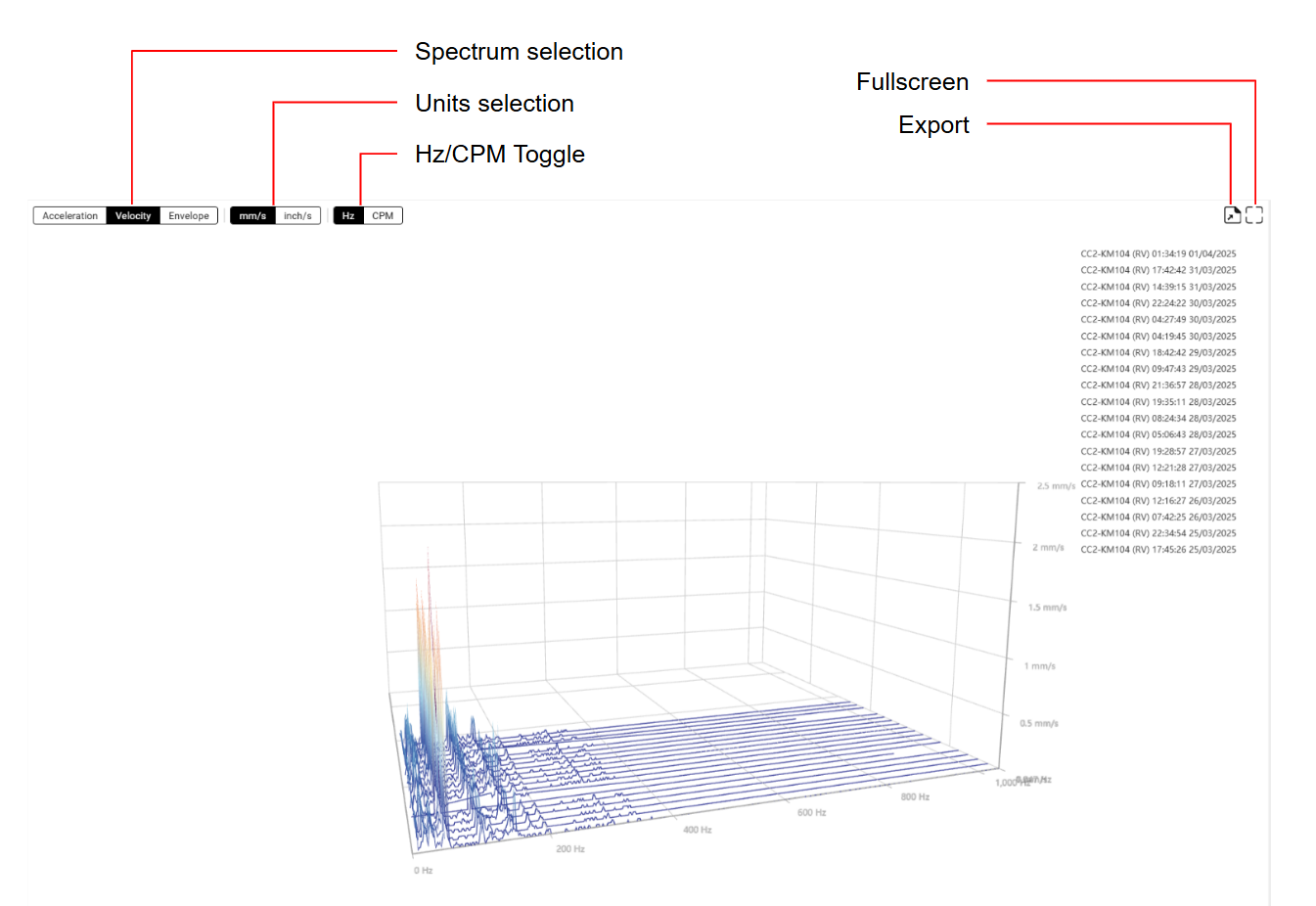

The graph functions are options available on top of the graph. These options allow the user to interact with the data displayed as follows:
Spectrum selection: select the type of spectrum to visualize (acceleration, velocity, or envelope)
Units selection: change the units used in the graph among the available options. For acceleration and evelope: G, m/s², ft/s²; and for velocity: mm/s and inch/s.
Hz/CPM Toggle: Rescale the horizontal axis to CPM or back to Hz.
Export: download the graph's data in CSV format.
Fullscreen: expands the graph view to fullscreen.
Data points

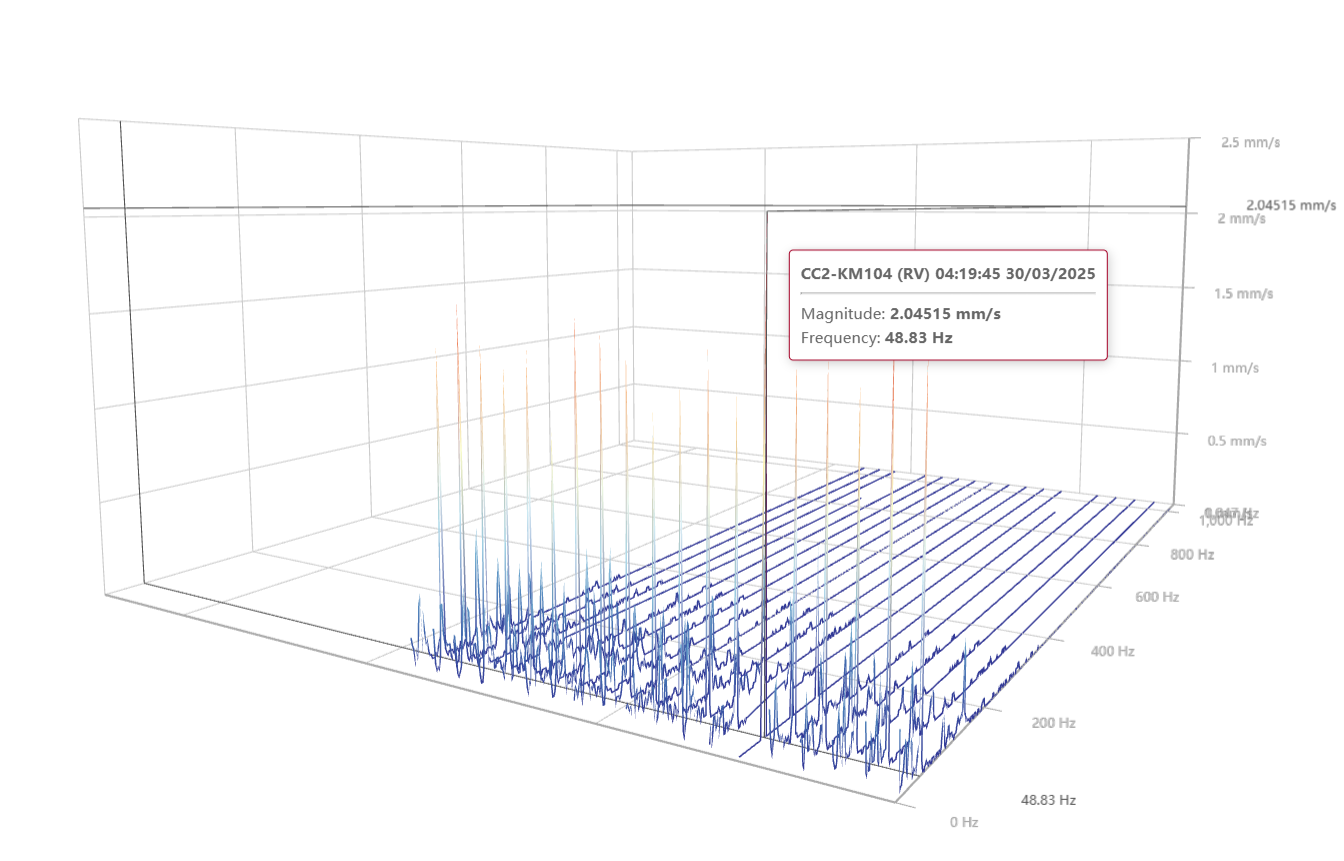

The specific value of a point in the graph can be seen by hovering over the graph. By doing so, the values of the X, Y, and Z axes will show. Additionally, helping guides for analysis will be available at such points.
