# Machine alerts & RPM

#### To be used with NEON Vibration Sensors

In the detail view of a device, the user can set alert thresholds by hovering next to Machine alerts and clicking on the plus (+) icon that appears.

<figure><img src="/files/I17o3sVSUM7j0GOSUobP" alt=""><figcaption><p>Example to set alert thresholds</p></figcaption></figure>

By doing so, a pop-up window will appear where the user can select which alerts to set in the device.&#x20;

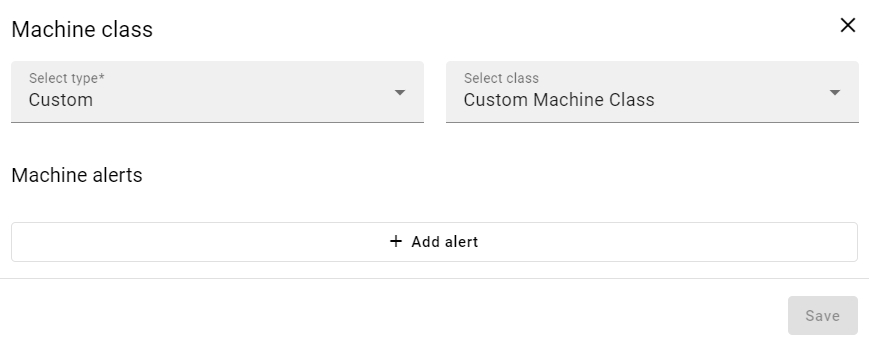

<figure><img src="/files/ldIRh7qHoJRz09Iqt4wK" alt=""><figcaption><p>Machine alerts screen</p></figcaption></figure>

From the dropdowns, the user can select pre-defined options based on the ISO10816 or add custom alerts. For example, selecting the type **General Machines** and the class **Medium Machine Class II** will define alerts for the device as the example below:

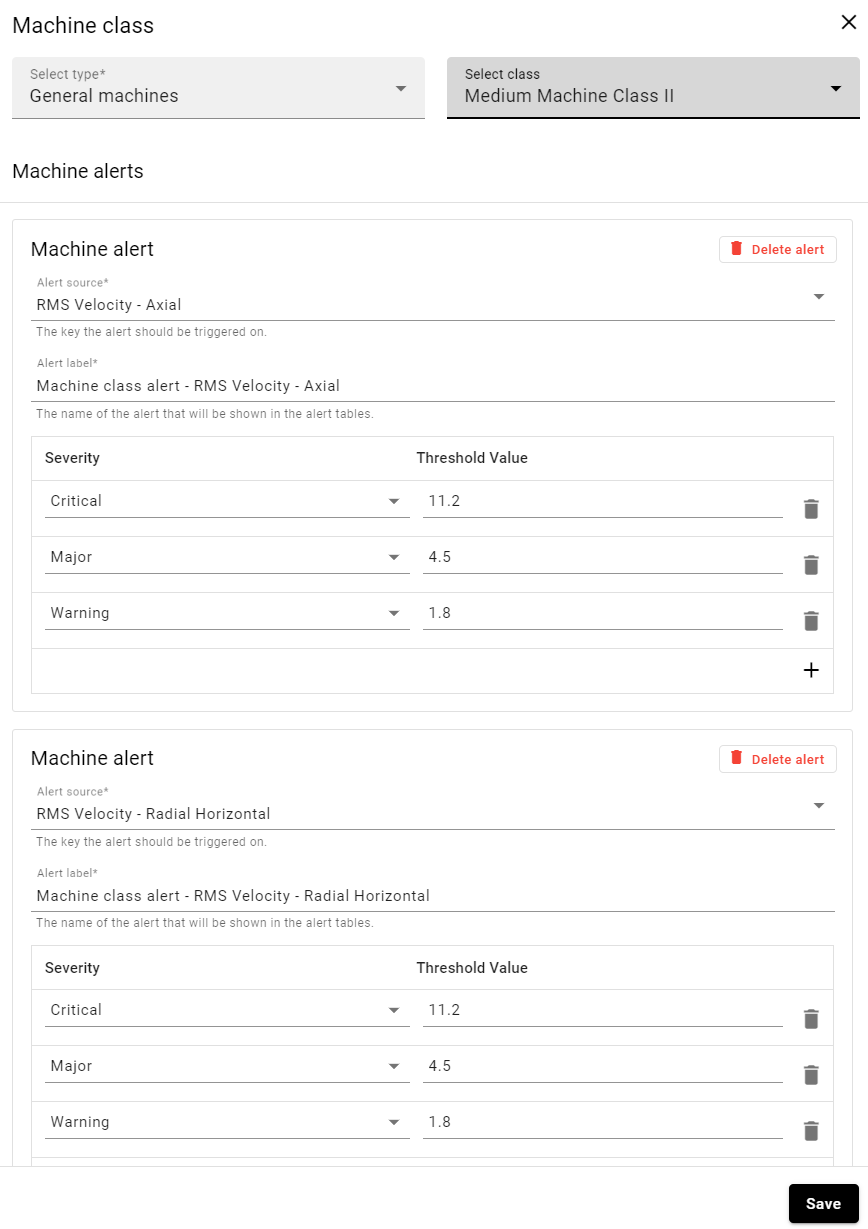

<figure><img src="/files/vamf9p86t0sWOJV3UEz7" alt=""><figcaption><p>Pre-defined alerts example</p></figcaption></figure>

The user can use these options as templates and edit the alerts according to their needs. Alternatively, custom alerts can be set by clicking on **Add Alert**. The fields the user will have to fill in are as follows:

* **Alert source**: the measurement to be monitored. This can be RMS velocity on any of the three axes, peak acceleration on any of the three axes, or temperature (minimum, maximum, or average).
* **Alert label**: a name to differentiate the alert and help the user identify it across SolidRed.
* **Severity**: available options are intermediate, warning, minor, major, or critical.&#x20;
* **Threshold value**: the value that needs to be met for the alert to trigger.&#x20;

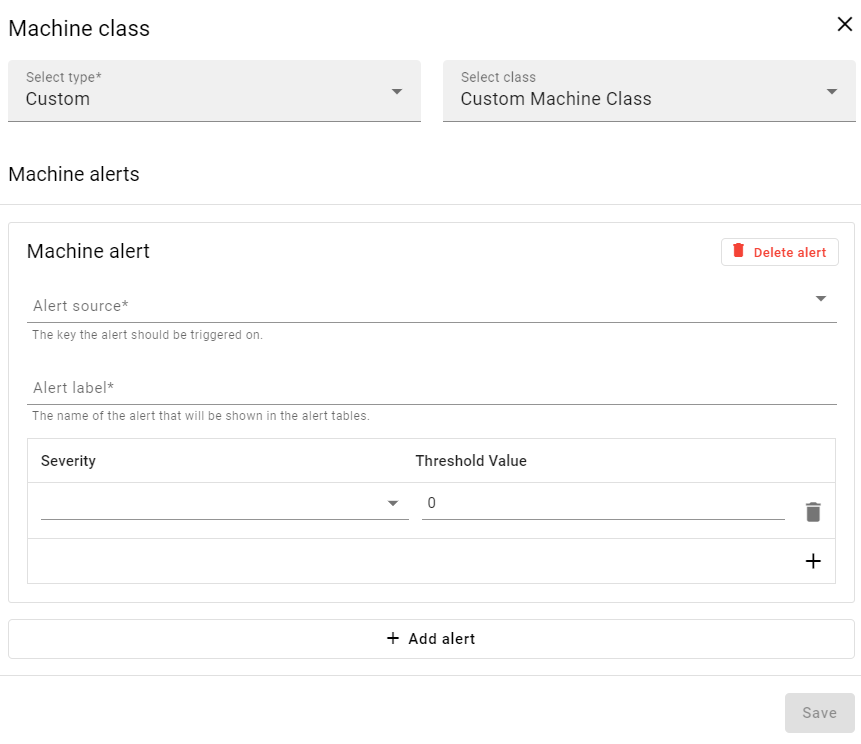

<figure><img src="/files/NUvI9S0KRPc8lr3H6iIk" alt=""><figcaption><p>Custom alerts configuration</p></figcaption></figure>

Clicking on the plus icon below the delete icon on the last defined alert level will let the user add another severity level for the alert. Up to 4 severity levels can be defined within a single alert. Finally, clicking the save button will apply the defined alerts to the device in question.&#x20;

Additionally, by hovering next to RPM and clicking the plus icon, a range for minimum and maximum RPM can be selected and defined in the asset.&#x20;

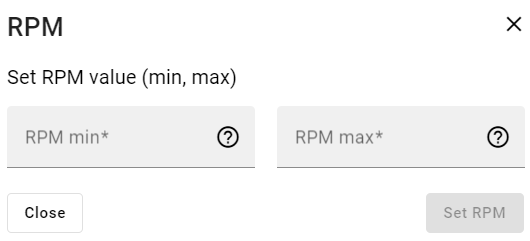

<figure><img src="/files/IfU4HeTTLLDMoAgQ4cfY" alt=""><figcaption><p>RPM range screen</p></figcaption></figure>


---
